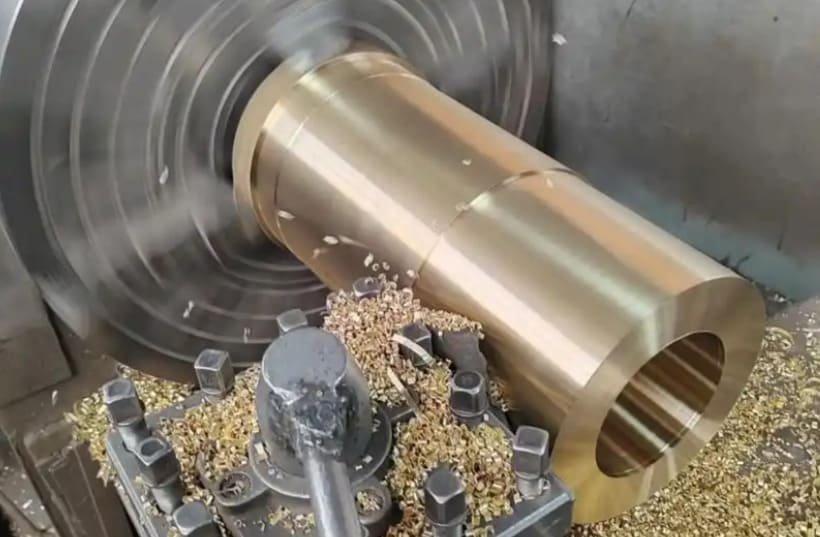

Bronze, an alloy primarily composed of copper and tin, has been utilized in manufacturing for thousands of years. Today, CNC machining bronze has revolutionized how we work with this versatile material, enabling precision components for industries ranging from marine to aerospace. This guide explores the technical aspects of bronze machining, from alloy selection to optimal cutting parameters, helping you achieve superior results in your manufacturing processes.

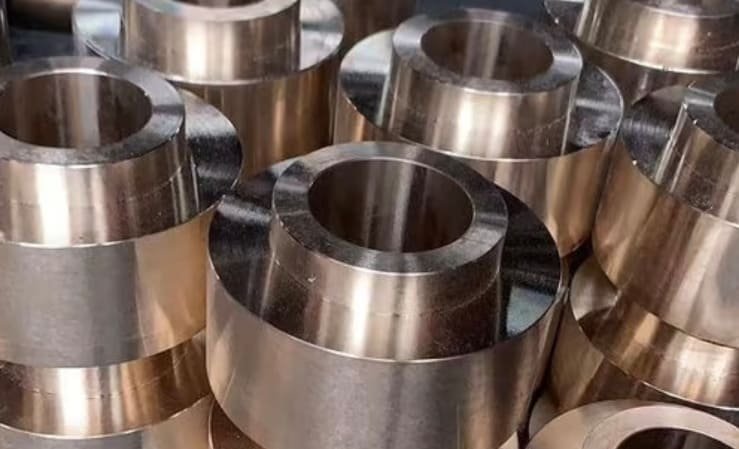

Bronze Alloys Used in CNC Machining
C932 Bearing Bronze (SAE 660)
C932 Bearing Bronze, also known as SAE 660, is one of the most widely used bronze alloys in CNC machining. This leaded tin bronze contains approximately 83% copper, 7% tin, and 7% lead, offering excellent machinability and anti-friction properties. Its self-lubricating characteristics make it ideal for bearings, bushings, and components that require low friction and high wear resistance.
C954 Aluminum Bronze
C954 Aluminum Bronze consists of approximately 85% copper, 11% aluminum, and small amounts of iron and nickel. This alloy exhibits exceptional strength, hardness, and corrosion resistance, particularly in marine environments. Its ability to withstand heavy loads and harsh conditions makes it perfect for pump components, marine hardware, and high-stress applications.
C510 Phosphor Bronze
Phosphor bronze (C510) contains copper, tin (5-10%), and a small amount of phosphorus (0.01-0.35%). The phosphorus acts as a deoxidizing agent during the melting process, improving the alloy’s mechanical properties. This alloy offers excellent spring qualities, fatigue resistance, and formability, making it suitable for electrical contacts, springs, and precision components.
Silicon Bronze
Silicon bronze typically contains 96% copper and 3% silicon, with traces of manganese, tin, and zinc. This alloy provides excellent corrosion resistance, high ductility, and good casting qualities. It’s commonly used in architectural applications, marine fittings, and components that require both strength and aesthetic appeal.
| Bronze Alloy | Composition | Machinability | Corrosion Resistance | Strength | Common Applications |
|---|---|---|---|---|---|
| C932 (SAE 660) | Cu 83%, Sn 7%, Pb 7% | Excellent (100%) | Good | Moderate | Bearings, bushings, thrust washers |
| C954 Aluminum Bronze | Cu 85%, Al 11%, Fe/Ni 4% | Moderate (60%) | Excellent | High | Marine components, pump shafts |
| C510 Phosphor Bronze | Cu 90-95%, Sn 5-10%, P 0.01-0.35% | Good (80%) | Very Good | Moderate-High | Springs, electrical contacts |
| Silicon Bronze | Cu 96%, Si 3%, Mn/Zn 1% | Good (75%) | Excellent | Moderate | Marine fittings, architectural elements |
Key Properties Affecting Bronze Machinability
Ductility
Bronze alloys exhibit varying degrees of ductility, which affects chip formation during machining. More ductile bronze alloys tend to produce continuous chips that can wrap around tools, potentially causing tool damage or poor surface finish. Controlling chip formation through proper tool geometry and cutting parameters is essential when machining bronze.
Thermal Conductivity
Bronze possesses excellent thermal conductivity, typically ranging from 26-50 W/m·K depending on the specific alloy. This property helps dissipate heat generated during machining operations, reducing the risk of thermal damage to both the workpiece and cutting tools. However, it also means that heat can spread quickly through thin-walled sections, potentially causing dimensional distortion if not properly managed.
Wear Resistance
The inherent wear resistance of bronze makes it an excellent material for components subject to friction and abrasion. However, this same property can accelerate tool wear during machining operations. Selecting appropriate tool materials and coatings helps in maintaining productivity and part quality when CNC machining bronze.
Work Hardening Tendency
Some bronze alloys, particularly those containing aluminum, exhibit work hardening tendencies during machining. This means the material becomes harder and more difficult to cut as machining progresses. To counter this effect, maintaining sharp cutting edges and appropriate feed rates is essential for consistent results.
Advantages of Bronze for CNC Machining
- Excellent corrosion resistance, especially in marine environments
- Superior wear resistance for long-lasting components
- Good thermal conductivity for heat dissipation
- Self-lubricating properties in certain alloys (leaded bronzes)
- Non-sparking characteristics for safety in explosive environments
Challenges in Bronze Machining
- Tendency to produce stringy chips that can entangle tools
- Work hardening in some alloys requiring careful parameter selection
- Higher material cost compared to steel or aluminum
- Tool wear concerns, especially with abrasive aluminum bronzes
- Potential for thermal distortion in thin-walled sections

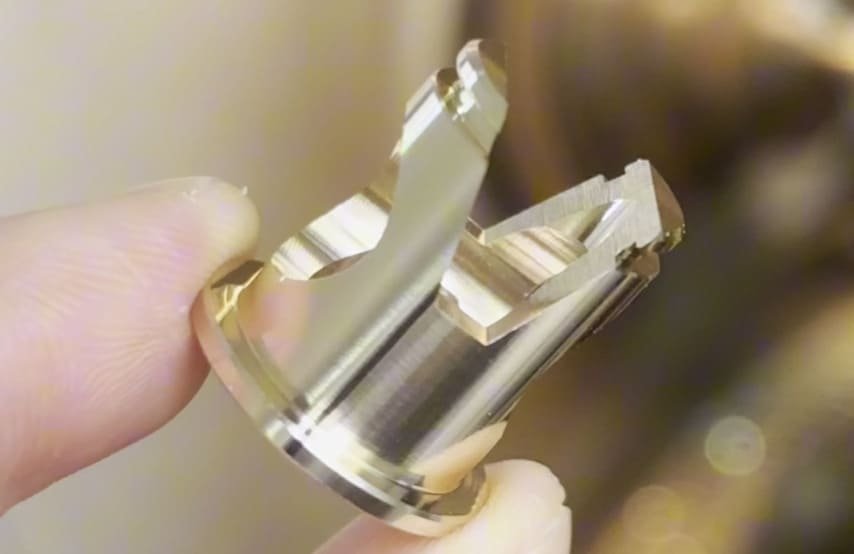

Common Applications of CNC Machined Bronze Parts
The unique combination of properties offered by bronze makes it an ideal material for numerous applications across various industries. CNC machining bronze enables the production of complex, precise components that leverage these properties for optimal performance.
Marine Industry Applications
The marine industry extensively utilizes CNC machined bronze components due to their exceptional corrosion resistance in saltwater environments. Common applications include:
- Propeller components and shafts
- Seawater pumps and valves
- Underwater fasteners and fittings
- Rudder bearings and bushings
- Marine hardware exposed to harsh environments
Aerospace Applications
In aerospace engineering, bronze components offer reliability and performance under demanding conditions:
- Landing gear bushings and bearings
- Hydraulic system components
- Engine mounting hardware
- Electrical connectors requiring corrosion resistance
- Wear plates for moving assemblies
Automotive Applications
The automotive industry leverages bronze’s wear resistance and low friction properties for:
- Engine bearings and bushings
- Transmission components
- Valve guides and seats
- Synchronizer rings
- Worm gears in steering systems
Tool Selection for CNC Machining Bronze
The right tool material, geometry, and coating can significantly impact machining efficiency, surface finish quality, and tool life.
Tool Materials: Carbide vs. HSS
When machining bronze, two primary tool materials are commonly used: carbide and high-speed steel (HSS). Each offers distinct advantages depending on the specific application:
Carbide Tools
Carbide tools are generally preferred for CNC machining bronze due to their superior hardness, wear resistance, and ability to maintain sharp cutting edges. They excel in high-volume production environments and when machining abrasive bronze alloys like aluminum bronze.
- Longer tool life when machining abrasive bronze alloys
- Ability to maintain tighter tolerances over extended runs
- Better performance at higher cutting speeds
- Superior heat resistance for continuous operations
HSS Tools
High-speed steel tools can be suitable for machining softer bronze alloys in lower-volume applications. They offer greater toughness and are less prone to chipping when interrupted cuts are necessary.
- More economical for small production runs
- Better shock resistance for interrupted cutting
- Easier to customize or modify for special applications
- Suitable for softer bronze alloys like leaded bronze
Optimal Tool Geometries
The geometry of cutting tools significantly impacts their performance when machining bronze. Consider these recommendations for optimal results:
Rake Angle
Positive rake angles (10-15°) are generally recommended for bronze machining to reduce cutting forces and improve chip evacuation.
Relief Angle
A relief angle of 8-12° helps prevent rubbing and reduces heat generation during cutting.
Helix Angle
For end mills, a moderate to high helix angle (35-45°) facilitates chip evacuation and reduces cutting forces.
Chip Breakers
Tools with effective chip breakers help control the long, stringy chips commonly produced when machining bronze.
Edge Preparation
A slight edge rounding or chamfering can enhance tool durability when machining abrasive bronze alloys.
Tool Coatings
Tool coatings can significantly enhance performance when machining bronze. The most effective coatings include:
- TiAlN (Titanium Aluminum Nitride): Offers excellent heat resistance and hardness, making it suitable for high-speed machining of bronze alloys.
- TiCN (Titanium Carbon Nitride): Provides good wear resistance and reduced friction, beneficial for machining leaded bronze.
- Diamond-Like Carbon (DLC): Offers extremely low friction coefficients, reducing built-up edge formation when machining sticky bronze alloys.
- Uncoated Tools: For some applications, particularly with leaded bronze, uncoated carbide tools may perform better as they allow the lead to act as a natural lubricant.

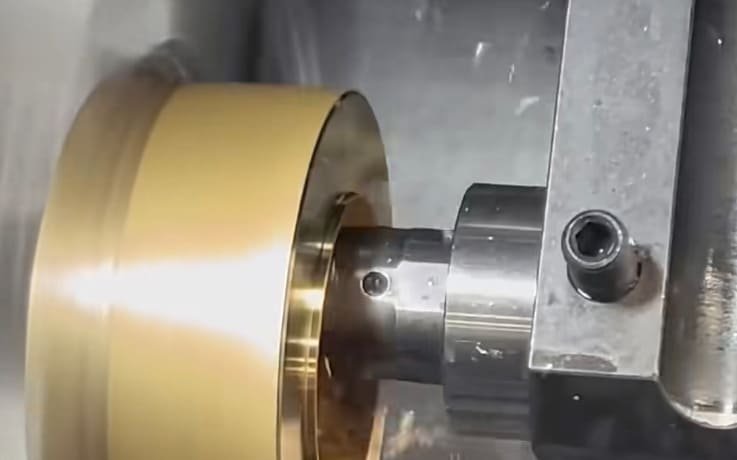

Optimal Machining Parameters for Bronze
These parameters must be tailored to the specific bronze alloy being machined and the type of operation being performed.
Cutting Speeds and Feeds
The appropriate cutting speeds and feed rates vary significantly depending on the bronze alloy being machined. Generally, bronze can be machined at higher speeds than steel but lower than aluminum. Here are recommended parameters for common bronze alloys:
| Bronze Alloy | Cutting Speed (SFM) | Feed Rate (IPT) | Depth of Cut (inches) | Notes |
|---|---|---|---|---|
| C932 Bearing Bronze | 300-500 | 0.005-0.015 | 0.020-0.100 | Excellent machinability, can use higher speeds |
| C954 Aluminum Bronze | 200-350 | 0.004-0.012 | 0.015-0.080 | More abrasive, requires reduced speeds |
| C510 Phosphor Bronze | 250-450 | 0.004-0.014 | 0.020-0.090 | Good machinability, watch for work hardening |
| Silicon Bronze | 250-400 | 0.004-0.013 | 0.020-0.085 | Moderate machinability, produces good finish |
Lubrication Requirements
Proper lubrication is essential when CNC machining bronze to control heat, improve surface finish, and extend tool life. Consider these lubrication strategies:
- Flood Coolant: Water-soluble coolants at 5-10% concentration are effective for general bronze machining operations.
- Misting Systems: Minimum quantity lubrication (MQL) can be effective for lighter cuts and finishing operations.
- Oil-Based Coolants: Provide better lubricity for difficult-to-machine bronze alloys like aluminum bronze.
- Dry Machining: Possible with leaded bronze alloys in some applications, as the lead content provides natural lubrication.
5 Technical Tips to Avoid Galling and Work Hardening
1. Maintain Sharp Cutting Edges
Dull tools increase friction and heat, accelerating work hardening. Replace or resharpen tools at the first sign of wear.
2. Use Consistent Feeds
Avoid dwelling or inconsistent feed rates that can cause work hardening. Program smooth tool paths with consistent engagement.
3. Apply Sufficient Coolant
Ensure adequate coolant flow directly to the cutting zone to minimize heat buildup that contributes to work hardening.
4. Optimize Tool Coatings
Select low-friction coatings like TiAlN or DLC to reduce galling tendencies, especially with aluminum bronze.
5. Implement Proper Chip Control
Use appropriate chip breakers and cutting geometries to prevent chip re-cutting, which can lead to galling and poor surface finish.

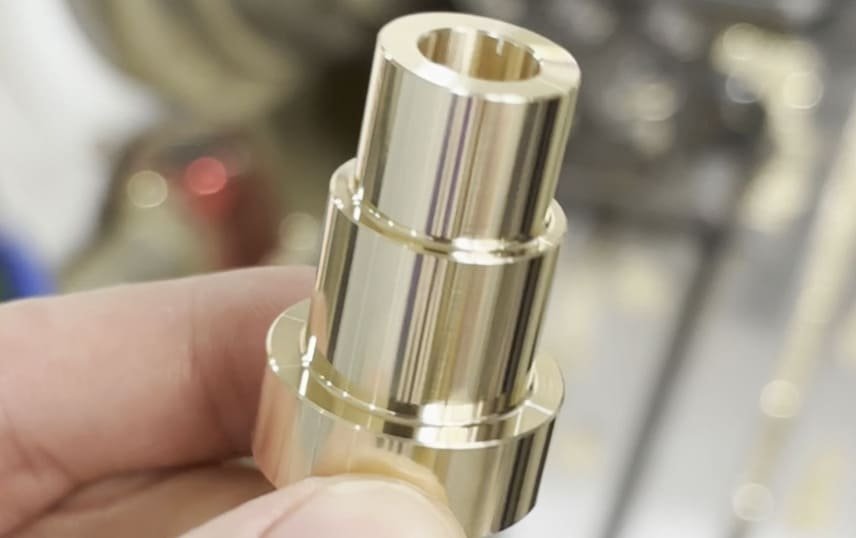

Post-Processing Considerations for Bronze Components
After CNC machining, bronze components often require additional processing to achieve desired surface finishes, remove burrs, or enhance specific properties.
Deburring Techniques
Bronze machining often produces burrs that must be removed to ensure proper fit and function. Effective deburring methods include:
- Manual Deburring: Using specialized tools like deburring knives, files, or scrapers for precision work.
- Vibratory Finishing: Placing parts in a vibratory tumbler with appropriate media to remove burrs and achieve uniform surface finish.
- Thermal Deburring: Using controlled combustion to remove burrs in hard-to-reach areas, though less common for bronze.
- Electrochemical Deburring: Utilizing electrochemical processes to precisely remove burrs from complex geometries.
- Brush Deburring: Using rotary wire or abrasive brushes to remove light burrs and break sharp edges.
Surface Treatments
Various surface treatments can enhance the appearance, corrosion resistance, or functional properties of bronze components:
Mechanical Finishes
- Polishing: Creates a smooth, reflective surface using progressively finer abrasives.
- Bead Blasting: Produces a uniform matte finish by propelling fine glass beads at the surface.
- Brushing: Creates a directional satin finish using wire or abrasive brushes.
- Lapping: Achieves extremely flat surfaces and tight tolerances using abrasive compounds.
Chemical Treatments
- Patination: Creates decorative colored finishes through controlled chemical reactions.
- Passivation: Enhances natural corrosion resistance by removing surface contaminants.
- Chemical Cleaning: Removes oxides and machining residues to prepare for further treatments.
- Conversion Coatings: Forms protective layers that improve corrosion resistance and adhesion.
Heat Treatment
Some bronze alloys benefit from heat treatment to optimize their mechanical properties:
- Stress Relief: Heating to moderate temperatures (300-400°C) to relieve internal stresses from machining.
- Annealing: Softening the material by heating to 600-700°C followed by slow cooling, useful for improving ductility.
- Precipitation Hardening: For aluminum bronze alloys, can increase hardness and strength through controlled heating and cooling cycles.
- Quenching: Rapid cooling from elevated temperatures to achieve specific mechanical properties in some bronze alloys.
Real-World Case Studies in Bronze CNC Machining
Examining real-world applications provides valuable insights into the practical aspects of CNC machining bronze. These case studies highlight the challenges, solutions, and results achieved in various industries.
Case Study 1: Marine Propulsion System Components
A manufacturer of high-performance marine propulsion systems needed bronze components capable of withstanding saltwater corrosion while maintaining precise tolerances for optimal performance.
- Material: C954 Aluminum Bronze
- Challenge: Achieving ±0.0005″ tolerances on complex internal passages while maintaining surface finish requirements of 32 μin Ra.
- Solution: Implemented a multi-stage machining process using solid carbide tools with TiAlN coating. Utilized a custom fixturing system to minimize workpiece distortion during machining.
- Machining Parameters: Cutting speed of 250 SFM, feed rate of 0.006 IPT, with high-pressure coolant delivery directly to the cutting zone.
- Results: Successfully achieved all tolerance requirements with a 98.5% first-pass yield rate. Components demonstrated excellent corrosion resistance in accelerated saltwater testing.
Case Study 2: Aerospace Landing Gear Bushings
An aerospace component supplier needed to produce high-precision bronze bushings for landing gear assemblies, requiring exceptional wear resistance and dimensional stability.
- Material: C932 Bearing Bronze (SAE 660)
- Challenge: Maintaining concentricity within 0.0008″ TIR and achieving surface finishes of 16 μin Ra on bearing surfaces.
- Solution: We developed a specialized CNC turning process with diamond-tipped tools for finishing passes. Implemented in-process measurement to verify dimensions during machining.
- Machining Parameters: Roughing at 400 SFM with 0.012 IPR feed rate; finishing at 450 SFM with 0.004 IPR feed rate using oil-based coolant.
- Results: Achieved concentricity of 0.0005″ TIR and surface finishes of 12 μin Ra, exceeding requirements. Components demonstrated 30% longer service life than previous designs.
Case Study 3: Industrial Hydraulic Manifolds
A hydraulic systems manufacturer required complex manifold blocks with intricate internal passages for high-pressure fluid control applications.
- Material: C510 Phosphor Bronze
- Challenge: Creating complex intersecting internal passages with minimal pressure drop while ensuring no burrs or debris remained in the system.
- Solution: Utilized 5-axis CNC machining with specialized long-reach tools. Developed a proprietary deburring process for internal passages using abrasive flow machining.
- Machining Parameters: Variable cutting speeds from 200-350 SFM depending on feature complexity, with adaptive feed control to maintain consistent tool loads.
- Results: Achieved all dimensional requirements with ±0.001″ tolerance. Pressure testing showed 15% less pressure drop than previous designs, improving overall system efficiency.

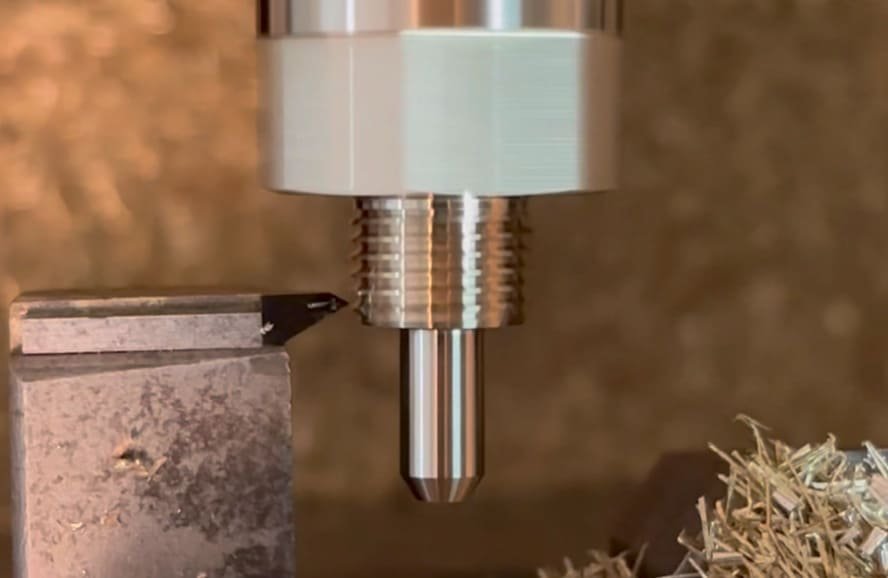

Optimized Toolpaths for Complex Bronze Parts
Developing efficient toolpaths is essential for successfully machining complex bronze components. The right approach can significantly impact machining time, tool life, and part quality.
Adaptive Clearing Strategies
Adaptive clearing techniques maintain consistent tool engagement, reducing tool wear and improving efficiency when machining bronze. These strategies are particularly beneficial for aluminum bronze alloys that can work harden if cutting conditions vary significantly.
- Trochoidal Milling: Uses circular tool movements to maintain consistent chip thickness and reduce cutting forces.
- Dynamic Milling: Adjusts feed rates and cutting depths based on material engagement to optimize material removal rates.
- High-Efficiency Machining (HEM): Utilizes specialized toolpaths to maintain consistent tool loads while maximizing material removal.
Finishing Strategies for Bronze
Achieving superior surface finishes on bronze components requires specialized finishing strategies that account for the material’s properties:
- Step-Down Approach: Utilizing smaller step-downs (0.005-0.010″) with higher step-overs (up to 50%) can produce better surface finishes on bronze.
- Constant Chip Load: Maintaining consistent chip thickness throughout finishing passes helps prevent work hardening and surface irregularities.
- Climb Milling: Generally preferred for finishing bronze as it produces better surface quality and reduces work hardening.
- Spiral Toolpaths: For circular features, spiral toolpaths eliminate dwell marks and provide more consistent surface finish.
Conclusion
CNC machining bronze offers unique advantages for applications requiring excellent wear resistance, corrosion immunity, and thermal conductivity. By understanding the specific properties of different bronze alloys and implementing appropriate machining strategies, manufacturers can achieve exceptional results in terms of dimensional accuracy, surface finish, and component performance.
