Precision 5-Axis CNC Machining Services
CNCPOR delivers precision 5-axis CNC machining services for complex parts with tight tolerances. Our advanced multi-axis machining capabilities enable the production of intricate geometries that traditional 3-axis machining cannot achieve. With state-of-the-art equipment and expert engineers, we provide superior machining solutions for aerospace, medical, automotive, and other industries requiring high-precision components.
What is 5-Axis CNC Machining?

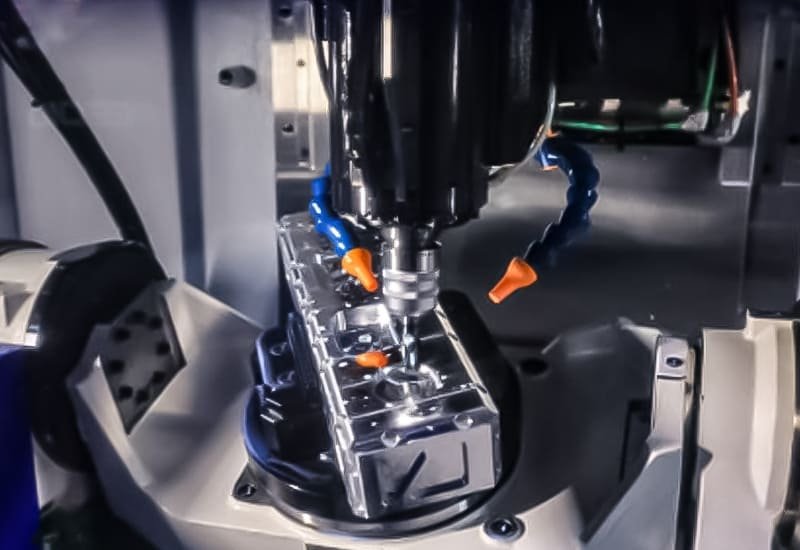

5-axis CNC machining is an advanced manufacturing process that allows the cutting tool to move simultaneously across five different axes. Unlike conventional 3-axis machining that operates along the X, Y, and Z linear axes, 5-axis machining adds two rotational axes (A and B, or B and C). This enhanced capability enables the cutting tool to approach the workpiece from virtually any direction, creating complex geometries in a single setup.
How 5-Axis CNC Machining Works
In 5-axis CNC machining, computer numerical control (CNC) directs the precise movements of the cutting tool. The machine interprets CAD/CAM programs to guide the tool along five axes simultaneously:
- Three linear axes (X, Y, Z) for movement in three-dimensional space
- Two rotational axes for tilting and rotating the cutting tool or workpiece
This configuration allows the tool to maintain optimal contact with the workpiece at all times, resulting in superior surface finishes and the ability to create complex features in a single setup.
Types of 5-Axis Machining
CNCPOR offers two primary types of 5-axis machining:
Simultaneous 5-Axis:
All five axes move concurrently, enabling the creation of complex contoured surfaces with superior finishes.
3+2 Positioning (Indexed):
The two rotational axes position the cutting tool at a fixed angle, then the three linear axes perform the cutting. This approach offers enhanced stability for certain applications.
Our expert machinists determine the optimal approach based on your part requirements, balancing precision, efficiency, and cost-effectiveness.
Advantages of 5-Axis CNC Machining
Enhanced Precision
Our 5-axis CNC machining services deliver exceptional accuracy with tolerances as tight as ±0.0005 inches. By reducing the number of setups required, we minimize the potential for human error and alignment issues, resulting in superior dimensional accuracy for your complex parts.
Complex Geometries
Create intricate shapes, undercuts, and compound angles that would be impossible with conventional machining. Our 5-axis technology can produce parts with complex contours, deep cavities, and features on multiple faces in a single setup, expanding your design possibilities.
Superior Surface Finish
The ability to maintain optimal tool-to-part orientation allows our 5-axis machines to achieve exceptional surface finishes. The cutting tool can always approach the workpiece at the ideal angle, reducing the need for secondary finishing operations.
Reduced Setup Time
With 5-axis machining, we can complete your parts in a single setup rather than multiple operations. This significantly reduces production time, minimizes handling, and lowers the risk of errors, resulting in faster turnaround and more consistent quality.
CNCPOR's 5-Axis Machining Capabilities

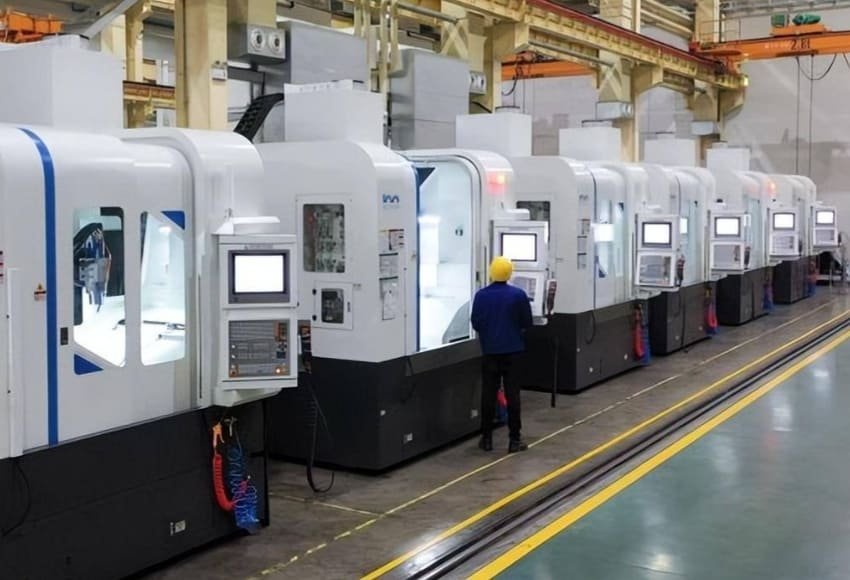

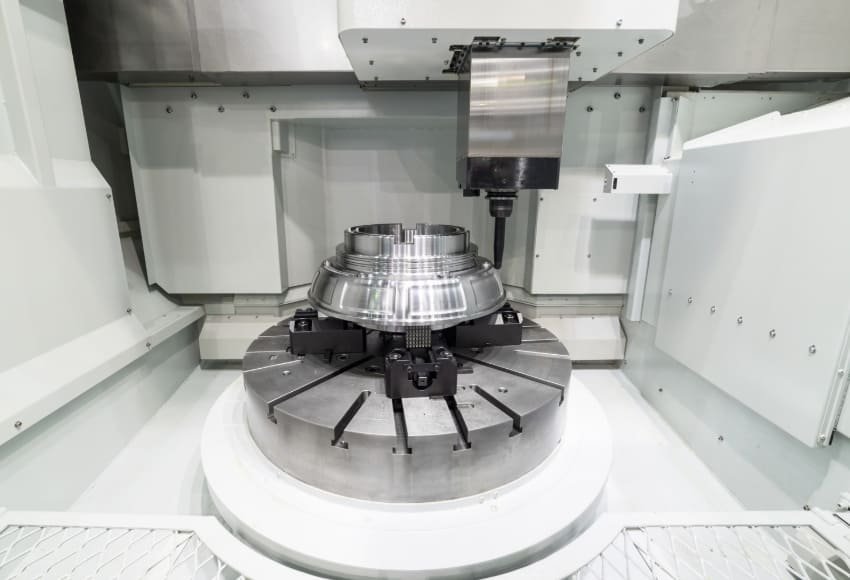

We’ve invested in state-of-the-art 5-axis CNC machining centers to deliver exceptional precision and versatility.
| Specification | Capability |
|---|---|
| Maximum Part Size | Up to 4000mm × 1500mm × 600mm |
| Minimum Feature Size | 0.2mm (0.008") |
| Standard Tolerances | ±0.025mm (±0.001") |
| Precision Tolerances | ±0.013mm (±0.0005") |
| Surface Finish | Up to 0.8 Ra μm (32 μin) |
| 5-Axis Machine Brands | DMG MORI, Haas, Mazak, Okuma |
| CAD/CAM Software | Mastercam, SolidWorks CAM, Fusion 360 |
| Quality Control | CMM inspection, laser scanning, in-process verification |
Materials for 5-Axis CNC Machining
Our 5-axis CNC machining services can process virtually any machinable material, from common metals to specialized alloys and engineered plastics.
Metals
- Aluminum Alloys: 6061, 7075, 5052, 2024
- Stainless Steel: 303, 304, 316, 17-4 PH
- Tool Steel: A2, D2, O1, H13
- Carbon Steel: 1018, 1045, 4140, 4340
- Titanium: Grade 2, Grade 5 (Ti-6Al-4V)
- Copper Alloys: C101, C110, C360 (Brass)
- Nickel Alloys: Inconel 718, Monel, Hastelloy
Plastics & Composites
- Engineering Plastics: Delrin (Acetal), PEEK, Ultem
- Standard Plastics: ABS, Nylon, Polycarbonate, HDPE
- Tool Steel: A2, D2, O1, H13
- High-Performance Plastics: PTFE (Teflon), PPS, PVDF
- Composites: G10/FR4, Carbon Fiber, Glass-Filled Nylon
- Medical-Grade Plastics: PEEK (implant grade), PPSU
- Machinable Ceramics: Macor, alumina
Material Selection Assistance
Not sure which material is best for your application? Our engineering team can help you select the optimal material based on your performance requirements, budget, and application environment.
Surface Finishing Options for 5-Axis Machined Parts
CNCPOR offers a comprehensive range of surface finishing options to enhance the appearance, durability, and functionality of your 5-axis machined parts.
Mechanical Finishes
- Bead Blasting: Creates a uniform matte finish
- Polishing: Produces mirror-like surfaces
- Brushing: Creates directional grain patterns
- Tumbling: Smooths edges and surfaces
- Vibratory Finishing: Uniform surface preparation
Chemical Finishes
- Anodizing (Type I, II, III): For aluminum parts
- Passivation: For stainless steel corrosion resistance
- Chemical Film (Alodine): Corrosion protection
- Electropolishing: Smooths and brightens surfaces
- Black Oxide: Dimensional stability with corrosion resistance
Coating Finishes
- Powder Coating: Durable colored finish
- Painting: Decorative and protective
- Plating: Nickel, chrome, gold, silver
- PTFE Coating: Low friction applications
- Hard Coat: Extreme wear resistance
Custom Finishing Solutions:
Don’t see the finish you need? Contact our team to discuss custom finishing options for your specific application requirements.
Quality Assurance for 5-Axis CNC Machining
At CNCPOR, quality is built into every step of our 5-axis CNC machining process. Our comprehensive quality management system ensures that your parts meet or exceed your specifications consistently.
Our Inspection Equipment

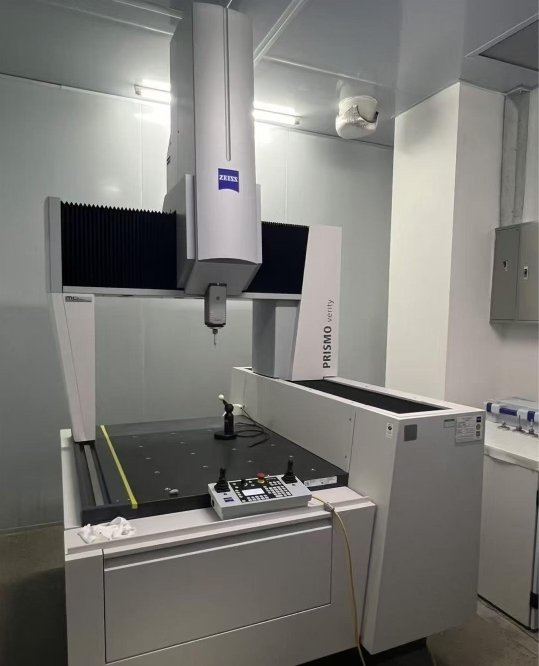

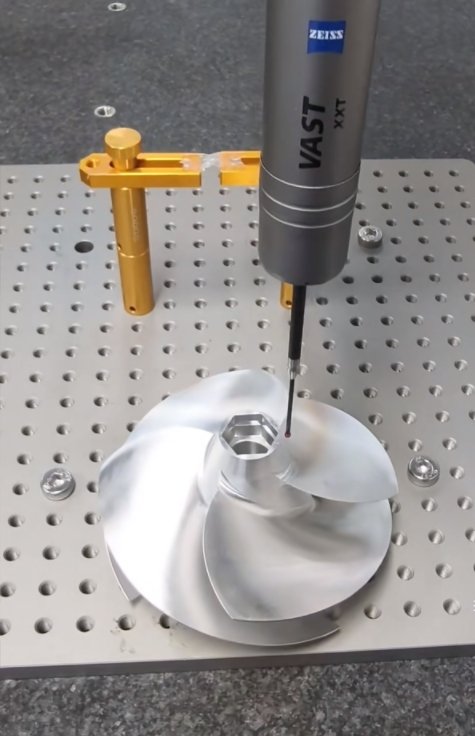

- Coordinate Measuring Machines (CMM)
- Optical Comparators
- 3D Laser Scanners
- Surface Roughness Testers
- Hardness Testers
5-Axis vs. 3-Axis CNC Machining: A Comparison
Understanding the differences between 5-axis and 3-axis CNC machining can help you determine the best approach for your project. Here’s how these technologies compare:
| Feature | 3-Axis CNC Machining | 5-Axis CNC Machining |
|---|---|---|
| Axes of Movement | X, Y, and Z linear axes only | X, Y, Z linear axes plus two rotational axes |
| Part Complexity | Limited to simpler geometries | Complex geometries with undercuts and compound angles |
| Setup Requirements | Multiple setups for complex parts | Single setup for most parts |
| Tool Access | Limited to top and sides | Access to virtually all part surfaces |
| Surface Finish | Good, but may require secondary operations | Excellent, with optimal tool orientation |
| Production Time | Longer for complex parts due to multiple setups | Shorter due to single setup and efficient tool paths |
| Cost | Lower hourly rate but potentially higher total cost for complex parts | Higher hourly rate but often lower total cost for complex parts |
| Ideal Applications | Simple parts, 2.5D features, flat surfaces | Complex geometries, aerospace parts, medical devices |
Not sure which machining approach is right for your project?
Our engineering team can evaluate your part design and recommend the most cost-effective manufacturing method while meeting your quality and timeline requirements.
Our 5-Axis CNC Machining Projects
Explore some of our recent work showcasing the precision and complexity achievable with our 5-axis CNC machining capabilities.

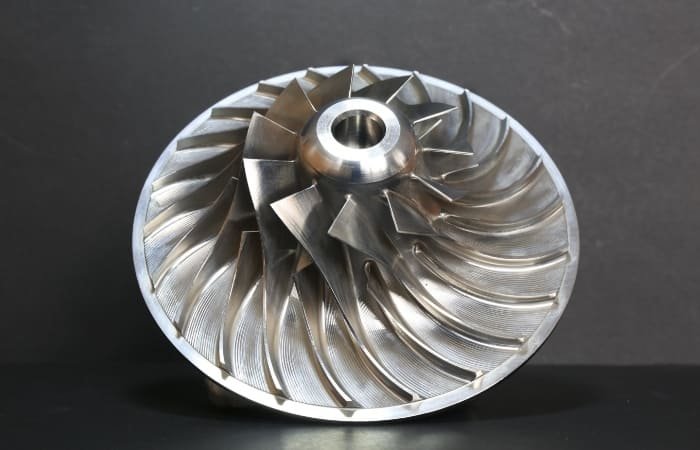

Turbine Blade Prototyping
Complex turbine blade prototypes machined from titanium alloy with precision airfoil profiles and internal cooling channels.
Materials: Titanium Alloy
Orthopedic Implant Production

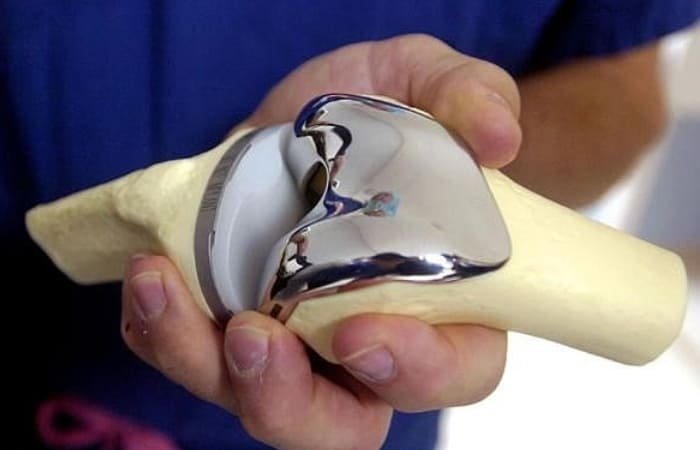

Custom orthopedic implants machined from medical-grade stainless steel with intricate surface textures for improved bone integration.
Materials: Stainless Steel
High-Performance Engine Components

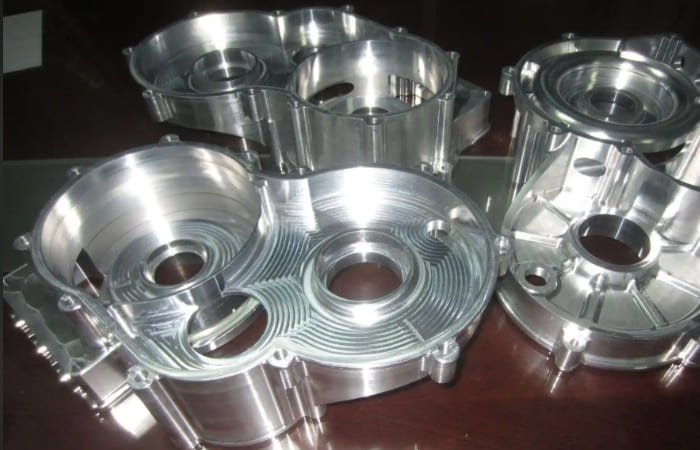

Lightweight aluminum alloy engine components for racing applications, featuring complex geometries and optimized flow paths.
Materials: Aluminum Alloy
Military-Grade Communication Housings

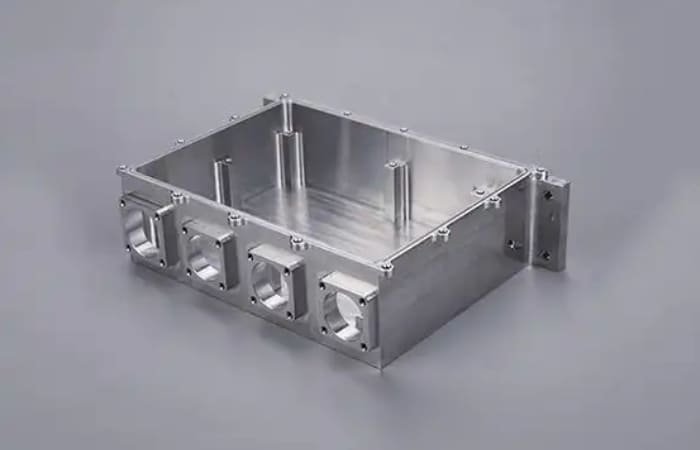

Ruggedized aluminum alloy housings for military communication equipment, machined to exacting specifications with EMI/RFI shielding features.
Materials: Aluminum Alloy
Robotic Arm Joints
Precision robotic arm joints machined from high-strength steel, featuring smooth articulation surfaces and integrated bearing seats.
Materials: High-Strength Steel

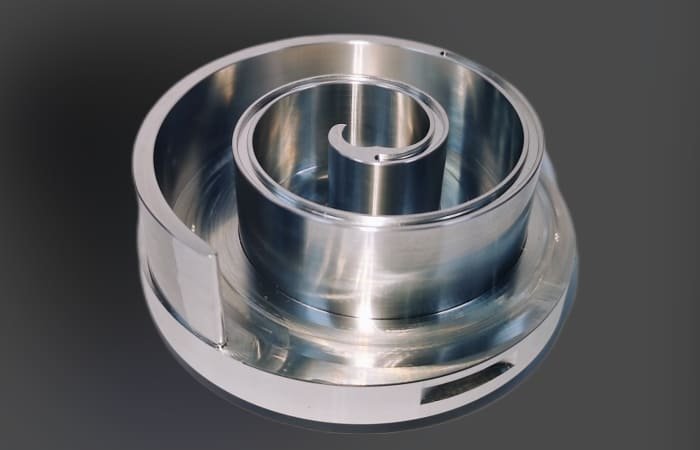

Orbiting Scroll Part
The scroll part used in the air conditioning compressor of new energy vehicles.
Materials: Aluminum Alloy
Our Faq
Yes. Compared with three-axis machining, five-axis CNC machining can complete multi-face machining of complex parts in one clamping, reducing positioning errors caused by multiple clamping operations, thus being more conducive to ensuring the machining accuracy of parts with high precision requirements.
Yes. As long as the special materials provided by customers are machinable, we can carry out five-axis CNC machining. Before processing, we will analyze the materials to understand their characteristics and formulate special processing techniques and schemes to ensure that the processing effect meets the requirements.
The cost of five-axis CNC machining can be reduced from the following aspects: optimize the part design, simplify the part structure and reduce unnecessary processing procedures; select materials reasonably and choose cost-effective materials on the premise of meeting the use requirements; increase the processing batch, as mass production can reduce the processing cost per unit product; plan production in advance to avoid additional costs caused by urgent orders; maintain long-term cooperation with processing manufacturers, which may obtain certain price discounts.
If it is due to our processing errors, we will rework or reprocess for free until the parts meet the requirements; if it is due to errors in the drawings or information provided by the customer, we will negotiate a solution with the customer and determine whether additional charges are needed according to the actual situation.
Parts with a length range of 0.5mm-3000mm and a weight range of 0-500kg can be processed. For ultra-large parts (over 1000mm), gantry-type five-axis machine tools are used. For micro parts (such as medical micro-components), high-precision spindles (with a speed of up to 40000rpm) are equipped to ensure processing stability.
Free DFM service is provided. An optimization report will be issued within 2 working days after receiving the drawings, including suggestions for simplifying processing procedures and reducing costs (such as changing deep holes to stepped holes, replacing non-standard tools with standard tools, etc.), with no additional charges.
There is no minimum order quantity limit, and 1 sample can be processed. The sample processing adopts rapid prototyping technology, and production is arranged with priority, with a delivery time of 3-5 days.
Yes. Cooperating third-party testing institutions can provide services such as tensile tests, salt spray tests, and hardness testing. We are responsible for coordinating sample submission for testing and following up the reports. The testing fees are borne by the customer.
